1411652 | Phoenix Contact

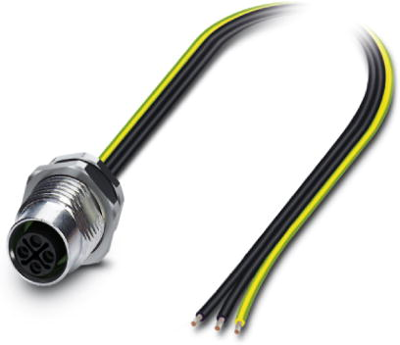

Panel socket, M12, 3 pole, strand connection, straight, 1411652

Order No.: 61P8675
EAN: 4046356937412
MPN:
1411652
SACC-DSI-M12FSS-3P-M16/0,5 PE
Series: SACC
1411652 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
29.8809 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
29.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
29.8809 €

Power connector, 1411652, Phoenix Contact

Device connector, rear mounting, Power, 3-position, Socket, M12, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 1.31 mm², UL/cUL stranded hook-up wire.

Features

  • Pre-assembled with litz wires for immediate use
  • Mechanical tightening limitation for long-term-stable gasket
  • M-coded
  • Sealed on the litz wire side for optimum leak-tightness
  • Pollution degree: 3
  • Overvoltage category: III

Applications

  • For transmitting high power
Technical specifications
Filter Property Value
Coding S
Product type panel socket
Pin number 3 pole
Degree of protection (IP) IP65/IP67
Orientation straight
Additional parts equipped
Thread size M12
Assembly rear mounting
contact surface gold-plated
Contact connection strand connection
Version cable 0.5 m
Logistics
Property Value
Customs tariff number 85444290
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
SVHC free No
