1411608 | Phoenix Contact

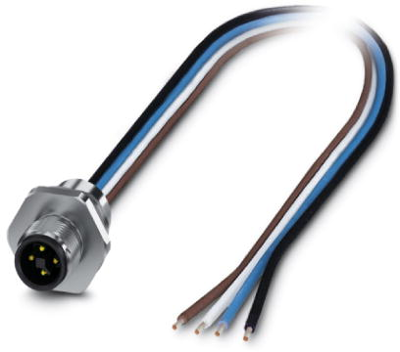

Panel plug, M12, 4 pole, strand connection, straight, 1411608
Unit Price (€ / pc.)
27.0963 € *
Standard delivery time from the manufacturer is: 3 Weeks
Power connector, 1411608, Phoenix Contact
Flush-type connector, Power, 4-position, Plug, M12,Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 1.31 mm², UL/cUL stranded hook-up wire.
Features
- Pre-assembled with litz wires for immediate use
- Mechanical tightening limitation for long-term-stable gasket
- Sealed on the litz wire side for optimum leak-tightness
- T-coded
- Pollution degree: 3
- Overvoltage category: III
- Degree of protection: IP67
Applications
- For transmitting high power
- For high transmission safety
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Version | cable 0.5 m | |
| Thread size | M12 | |
| Degree of protection (IP) | IP65/IP67 | |
| Pin number | 4 pole | |
| Product type | panel plug | |
| Additional parts | equipped | |
| Coding | T | |
| Assembly | front mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
