1411596 | Phoenix Contact

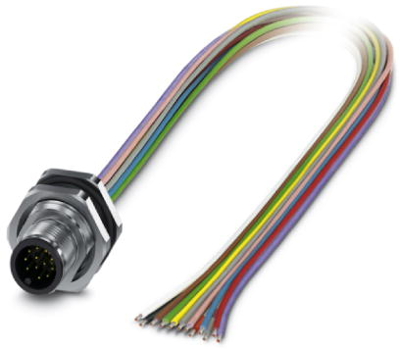

Panel plug, M12, 12 pole, strand connection, straight, 1411596
Unit Price (€ / pc.)
43.8753 € *
Standard delivery time from the manufacturer is: 4 Weeks
Sensor-actuator connector, 1411596, Phoenix Contact
Device connector, rear mounting, Universal, 12-position, Plug, M12, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.14 mm², TPE litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Mechanical tightening limitation for long-term-stable gasket
- A-coded
- Sealed on the litz wire side for optimum leak-tightness
- Pollution degree: 3
- Overvoltage category: II
Applications
- For signal transmission
- For data transimission
- For power transimission
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Product type | panel plug | |
| Contact connection | strand connection | |
| Additional parts | equipped | |
| Assembly | rear mounting | |
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| Thread size | M12 | |
| Pin number | 12 pole | |
| Version | cable 0.5 m | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
