1411586 | Phoenix Contact

Panel socket, M12, 5 pole, strand connection, straight, 1411586

Order No.: 61P8649
EAN: 4046356936040
MPN:
1411586
SACC-DSI-M12FS-5P-M16XL/0,5
Series: SACC
1411586 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
23.7881 € *
Available in 10 days: 1 pcs. - if ordered today
Total Price:
23.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
23.7881 €

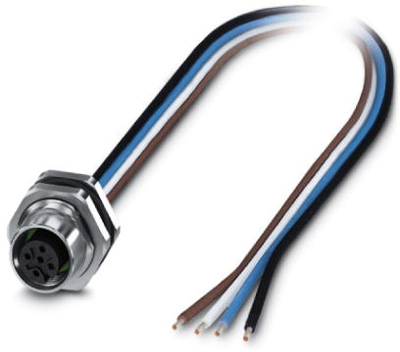

Sensor-actuator connector, 1411586, Phoenix Contact

Device connector, rear mounting, Universal, 5-position, Socket, M12, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.34 mm², TPE litz wire.

Features

  • Pre-assembled with litz wires for immediate use
  • Mechanical tightening limitation for long-term-stable gasket
  • A-coded
  • Sealed on the litz wire side for optimum leak-tightness
  • Pollution degree: 3
  • Overvoltage category: II

Applications

  • For signal transmission
  • For data transimission
  • For power transimission
Technical specifications
Additional parts equipped
Version cable 0.5 m
Thread size M12
Pin number 5 pole
contact surface gold-plated
Degree of protection (IP) IP67
Coding A
Contact connection strand connection
Assembly rear mounting
Orientation straight
Product type panel socket
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
