1411583 | Phoenix Contact
Panel plug, M12, 17 pole, strand connection, straight, 1411583
Unit Price (€ / pc.)
48.5163 € *
Standard delivery time from the manufacturer is: 6 Weeks

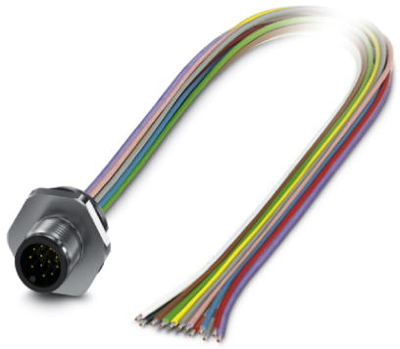

Sensor-actuator connector, 1411583, Phoenix Contact
Flush-type connector, Universal, 17-position, Plug, M12, Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.14 mm², TPE litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Mechanical tightening limitation for long-term-stable gasket
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For transmission of signals
- For data transimission
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Assembly | front mounting | |
| Orientation | straight | |
| Additional parts | equipped | |
| Version | cable 0.5 m | |
| Coding | A | |
| contact surface | gold-plated | |
| Degree of protection (IP) | IP67 | |
| Contact connection | strand connection | |
| Pin number | 17 pole | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
