1411579 | Phoenix Contact

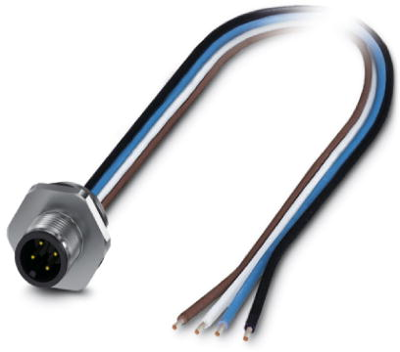

Panel plug, M12, 5 pole, strand connection, straight, 1411579
Unit Price (€ / pc.)
15.2201 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
15.22 € *
Price list
Quantity
Price per unit*
1 pcs.
15.2201 €
10 pcs.
13.6731 €
100 pcs.
12.3165 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 1411579, Phoenix Contact
Flush-type connector, Universal, 5-position, Plug, M12, Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.34 mm², TPE litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Mechanical tightening limitation for long-term-stable gasket
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For transmission of signals
- For data transimission
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M12 | |
| Product type | panel plug | |
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Assembly | front mounting | |
| Version | cable 0.5 m | |
| Pin number | 5 pole | |
| Additional parts | equipped | |
| Coding | A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
