1411574 | Phoenix Contact

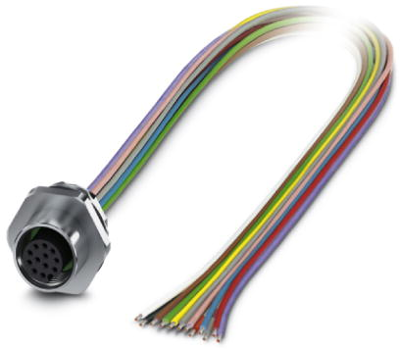

Panel socket, M12, 12 pole, strand connection, straight, 1411574
Unit Price (€ / pc.)
48.6472 € *
Available in 5 Days: 9 pcs. - if ordered today
Sensor-actuator connector, 1411574, Phoenix Contact
Flush-type connector, Universal, 12-position, Socket, M12, Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.14 mm², TPE litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For signal transmission
- For data transimission
- For power transimission
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Assembly | front mounting | |
| Contact connection | strand connection | |
| Coding | A | |
| Pin number | 12 pole | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Version | cable 0.5 m | |
| Product type | panel socket | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
