1411071 | Phoenix Contact
Jack, M12, 4 pole, IDC connection, screw locking, straight, 1411071
Unit Price (€ / pc.)
35.4858 € *
Available in 10 days: 165 pcs. - if ordered today

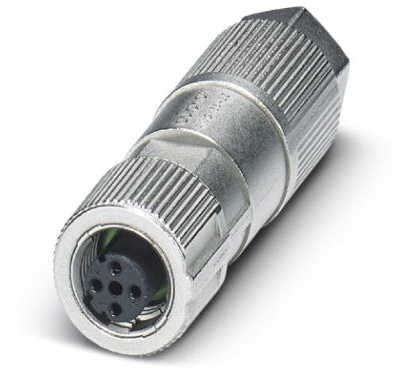

Sensor-actuator connector, 1411071, Phoenix Contact
Data connector, PROFINET CAT5 (100 Mbps), 4-position, halogen-free, shielded, Socket straight M12 SPEEDCON, Insulation displacement connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 5 mm - 9.7 mm.
Features
- Safe use in the field, thanks to a high degree of protection
- Reliable signal transmission
- D-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Coding | D | |
| Type of locking | screw locking | |
| Thread size | M12 | |
| Degree of protection (IP) | IP65/IP67 | |
| contact surface | nickel-plated/gold-plated | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Assembly | cable assembly | |
| Contact connection | IDC connection | |
| Product type | jack |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
