1411068 | Phoenix Contact

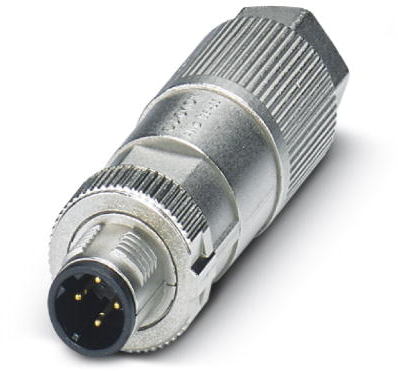

Plug, M12, 4 pole, IDC connection, screw locking, straight, 1411068
Order No.: 61P9409
EAN: 4046356921794
MPN:
1411068
SACC-MSD-4QO SH PN SCO
Unit Price (€ / pc.)
33.8317 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Sensor-actuator connector, 1411068, Phoenix Contact
Data connector, PROFINET CAT5 (100 Mbps), 4-position, halogen-free, shielded, plug straight M12 SPEEDCON, Insulation displacement connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 5 mm - 9.7 mm.
Features
- Safe use in the field, thanks to a high degree of protection
- Fast locking system
- Reliable signal transmission
- D-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Version | plug | |
| Thread size | M12 | |
| Coding | D | |
| Contact connection | IDC connection | |
| contact surface | nickel-plated/gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP65/IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
