1410665 | Phoenix Contact
Jack, M12, 8 pole, screw connection, screw locking, straight, 1410665
Unit Price (€ / pc.)
52.4909 € *
Standard delivery time from the manufacturer is: 1 Week

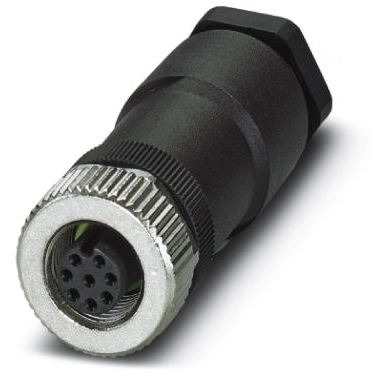

Sensor-actuator connector, 1410665, Phoenix Contact
Connector, Universal, 8-position, Socket straight M12, Screw connection, knurl material: Nickel-plated brass, cable gland Pg11, external cable diameter 8 mm - 10 mm.
Features
- Safe use in the field, thanks to a high degree of protection
- A-coded
- Pollution degree: 3
- Overvoltage category: I
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Orientation | straight | |
| Contact connection | screw connection | |
| Pin number | 8 pole | |
| Product type | jack | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Assembly | cable assembly | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
