1408453 | Phoenix Contact
Panel socket, M12, 8 pole, strand connection, straight, 1408453
Unit Price (€ / pc.)
42.0189 € *
Available in 10 days: 184 pcs. - if ordered today

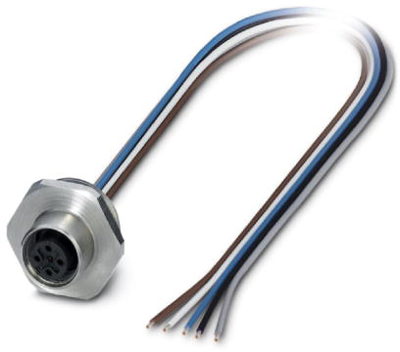

Sensor-actuator connector, 1408453, Phoenix Contact
Sensor/actuator flush-type female connector, 8-pole, M12, front/screw mounting with M20x1.5 thread, with 0.5 m TPE litz wire, 8 x 0.25 mm², brass housing.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For high transmission safety
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 8 pole | |
| contact surface | gold-plated | |
| Product type | panel socket | |
| Orientation | straight | |
| Additional parts | equipped | |
| Contact connection | strand connection | |
| Coding | A | |
| Degree of protection (IP) | IP67 | |
| Version | cable 0.5 m | |
| Assembly | front mounting | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
