1408451 | Phoenix Contact
Panel plug, M12, 4 pole, strand connection, straight, 1408451
Unit Price (€ / pc.)
34.7361 € *
Available in 10 days: 3 pcs. - if ordered today
Sensor-actuator connector, 1408451, Phoenix Contact

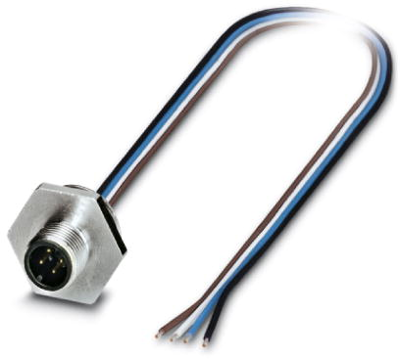

Sensor/actuator flush-type plug, 4-pole, M12, front/screw mounting with M20 x 1.5 thread, with 0.5 m TPE litz wire, 4 x 0.34 mm², brass housing.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For high transmission safety
Technical specifications
| Pin number | 4 pole | |
| Contact connection | strand connection | |
| Assembly | front mounting | |
| Version | cable 0.5 m | |
| Product type | panel plug | |
| Coding | A | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated | |
| Additional parts | equipped |
Download
Logistics
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
