1407618 | Phoenix Contact

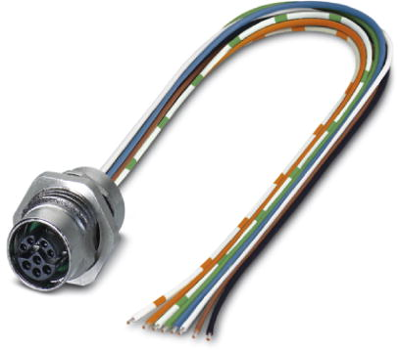

Panel socket, M12, 8 pole, strand connection, SPEEDCON locking, straight, 1407618
Unit Price (€ / pc.)
38.2704 € *
Standard delivery time from the manufacturer is: 5 Weeks
Sensor-actuator connector, 1407618, Phoenix Contact
Flush-type female connector, Ethernet hybrid CAT5 (IEC 11801:2002) (100 Mbps), 8-pole, female, M12 SPEEDCON, rear mounting, M16 x 1.5, contacts with connected litz wires, cable length: 0.5 m, 0.14 mm², TPE litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Y-coded
- Overvoltage category: III
- Degree of protection: IP67
Applications
- For transmission of signals
- For data transimission
- For power transimission
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Version | cable 0.5 m | |
| Pin number | 8 pole | |
| Thread size | M12 | |
| Coding | Y | |
| Type of locking | SPEEDCON locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | rear mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
