1406412 | Phoenix Contact

Panel socket, M12, 4 pole, solder connection, screw locking, straight, 1406412

Order No.: 61P8342
EAN: 4046356804363
MPN:
1406412
SACC-CI-M12FST-4CON-L180THR SH
Series: SACC

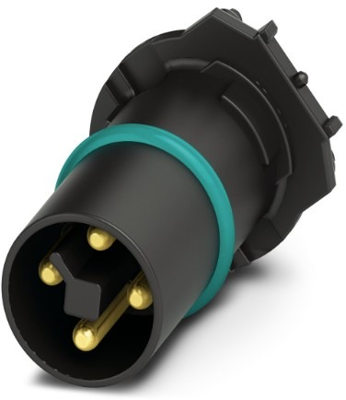

1406412 Phoenix Contact Sensor-Actuator Connectors Image 1
1406412 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.8782 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
6.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.8782 €

Power connector, 1406412, Phoenix Contact

Flush-type connector, Power, 4-position, Socket, straight, M12, PCB mounting, THR solder connection.

Features

  • Easy device integration
  • Two-piece device connector
  • T-coded
  • Pollution degree: 3
  • Overvoltage category: III

Applications

  • For transmitting high power
Technical specifications
Filter Property Value
Contact connection solder connection
Thread size M12
contact surface gold-plated
Assembly PCB mounting
Degree of protection (IP) IP67
Coding T
Type of locking screw locking
Orientation straight
Product type panel socket
Pin number 4 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
