1405240 | Phoenix Contact
Panel socket, M12, 4 pole, strand connection, straight, 1405240
Unit Price (€ / pc.)
53.2763 € *
Available in 5 Days: 419 pcs. - if ordered today

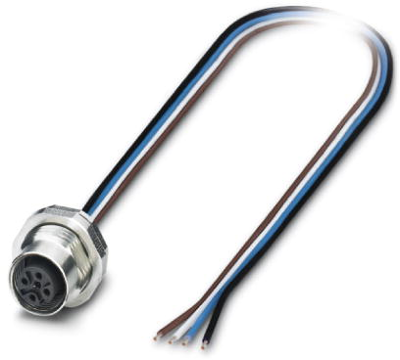

Sensor-actuator connector, 1405240, Phoenix Contact
Device connector, rear mounting, 4-position, Socket, straight, M12, on free cable end, Rear mounting, Pg9, Individual wires, cable length: 0.5 m, 0.34 mm², TPE litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Fast locking system
- Pollution degree: 3
- Overvoltage category: III
Applications
- For high transmission safety
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Assembly | rear mounting | |
| Coding | A | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67/IP69/IP69K | |
| Product type | panel socket | |
| Pin number | 4 pole | |
| Version | cable 0.5 m |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
