1405239 | Phoenix Contact

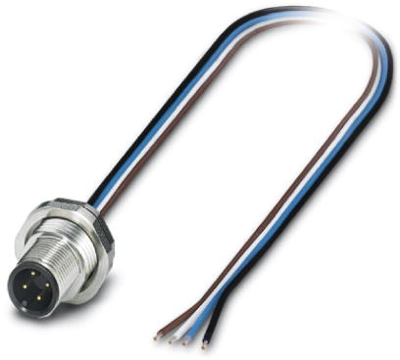

Panel plug, M12, 4 pole, strand connection, straight, 1405239
Unit Price (€ / pc.)
52.9907 € *
Available in 5 Days: 3 pcs. - if ordered today
Sensor-actuator connector, 1405239, Phoenix Contact
Sensor/actuator flush-type plug, 4-pole, M12, rear/screw mounting with Pg9 thread, with 0.5 m TPE litz wire, 4 x 0.34 mm².
Features
- Pre-assembled with litz wires for immediate use
- Fast locking system
- A-coded
- Sealed on the litz wire side for optimum leak-tightness
- Pollution degree: 3
- Overvoltage category: II
Applications
- For high transmission safety
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | panel plug | |
| Coding | A | |
| Assembly | rear mounting | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP65/IP67/IP69/IP69K | |
| Additional parts | equipped | |
| Version | cable 0.5 m |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
