1405238 | Phoenix Contact
Panel plug, M12, 12 pole, strand connection, straight, 1405238
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
47.6476 € *
Available in 5 Days: 2 pcs. - if ordered today
Total Price:
47.65 € *
Price list
Quantity
Price per unit*
1 pcs.
47.6476 €
5 pcs.
44.7797 €
15 pcs.
43.0780 €
50 pcs.
41.1502 €
150 pcs.
39.4485 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 1405238, Phoenix Contact

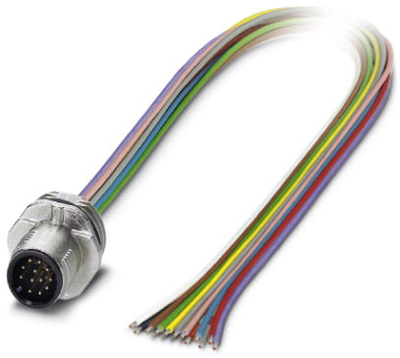

Sensor/actuator flush-type plug, 12-pole, M12 SPEEDCON, front/screw mounting with M16 thread, with 0.5 m PVC litz wire, 12 x 0.14 mm².
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For signal transmission
- For data transimission
- For power transimission
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 0.5 m | |
| Pin number | 12 pole | |
| Thread size | M12 | |
| Coding | A | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP65/IP67/IP69/IP69K |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
