1342200 | Phoenix Contact

Plug, M23, 12 pole, solder connection, ONECLICK quick locking system, straight, 1342200

Order No.: 64P5779
EAN: 4063151651565
MPN:
1342200
Series: M23 PRO
1342200 Phoenix Contact Sensor-Actuator Connectors

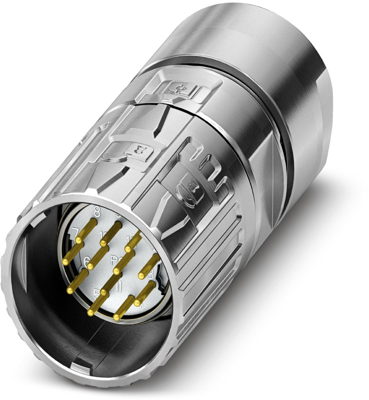

Image may differ
Unit Price (€ / pc.)
22.3720 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
22.37 € *
Price list
Quantity
Price per unit*
1 pcs.
22.3720 €
10 pcs.
20.9797 €
25 pcs.
19.7421 €
50 pcs.
18.6473 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connector, 1342200, Phoenix Contact

M23, Cable connector, Series: M23 PRO, straight, shielded: yes, ONECLICK-Schnellverriegelung, number of positions: 12, Drehsinn: Standard, contact connection type: Stift, Lötanschluss, cable diameter range: 6 mm - 10 mm, Kodierung: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Solutions with cross-manufacturer compatibility for standard and fast locking systems
  • ONECLICK fast locking system with an optically, haptically, and acoustically clear locking position
  • Reliable under the harshest conditions: cable connectors with vibration brake
  • Modern, consistent design for highly convenient operation
  • Easy, cost-effective cable assembly: uniform shielding of M17 to M40
Technical specifications
Pin number 12 pole
Type of locking ONECLICK quick locking system
Contact connection solder connection
Product type plug
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP66/IP68/IP69K
Thread size M23
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
