1340688 | Phoenix Contact

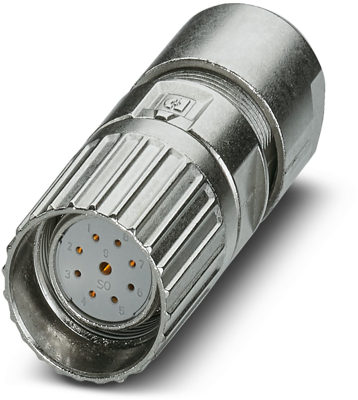

Jack, M23, 9 pole, solder connection, screw locking, straight, 1340688
Unit Price (€ / pc.)
20.5870 € *
Available in 10 days: 78 pcs. - if ordered today
Total Price:
20.59 € *
Price list
Quantity
Price per unit*
1 pcs.
20.5870 €
10 pcs.
19.3018 €
25 pcs.
18.1594 €
50 pcs.
17.1598 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable connector, 1340688, Phoenix Contact
M23, Cable connector, Series: M23 PRO, straight, shielded: yes, Screw locking mechanism, number of positions: 8+1, Drehsinn: Standard, contact connection type: Socket, Lötanschluss, cable diameter range: 6 mm - 10 mm, Kodierung: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Features
- Solutions with cross-manufacturer compatibility for standard and fast locking systems
- Modern, consistent design for highly convenient operation
- All housing can be fitted with pin or socket contacts
- Safe use in the field, thanks to high degree of protection
Technical specifications
| Thread size | M23 | |
| Pin number | 9 pole | |
| Assembly | cable assembly | |
| Product type | jack | |
| Type of locking | screw locking | |
| Contact connection | solder connection | |
| Coding | N | |
| Degree of protection (IP) | IP66/IP68/IP69K | |
| Orientation | straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
