1339341 | Phoenix Contact

Surface mount socket, M23, 19 pole, solder connection, standard/ONECLICK quick locking system, straight, 1339341

Order No.: 64P6522
EAN: 4063151643942
MPN:
1339341
Series: M23 PRO
1339341 Phoenix Contact Sensor-Actuator Connectors

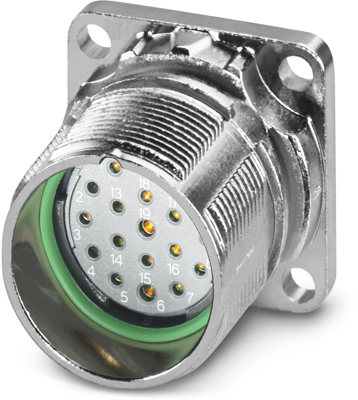

Image may differ
Unit Price (€ / pc.)
18.8020 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
18.80 € *
Price list
Quantity
Price per unit*
1 pcs.
18.8020 €
10 pcs.
17.5287 €
25 pcs.
16.4101 €
50 pcs.
15.4343 €
*incl. VAT plus shipping costs
Subject to prior sale

Device connector front mounting, 1339341, Phoenix Contact

M23, Device connector front mounting, series: M23 PRO Signal, straight, shielded: yes, for standard and ONECLICK fast locking system, No. of pos.: 16+3, Direction of rotation: Standard, contact connection type: Socket, Solder connection, 4x Ø 3.2, flange dimensions: 26 mm x 26 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Solutions with cross-manufacturer compatibility for standard and fast locking systems
  • Modern, consistent design for highly convenient operation
  • All housing can be fitted with pin or socket contacts
  • Safe use in the field, thanks to high degree of protection
Technical specifications
Pin number 19 pole
Type of locking standard/ONECLICK quick locking system
Contact connection solder connection
Product type surface mount socket
Coding N
Assembly panel mounting
Orientation straight
Degree of protection (IP) IP66/IP68
Thread size M23
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
