1339325 | Phoenix Contact

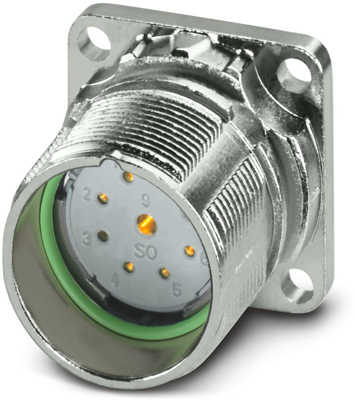

Surface mount socket, M23, 9 pole, solder connection, standard/ONECLICK quick locking system, straight, 1339325
Unit Price (€ / pc.)
12.9353 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
12.94 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9353 €
10 pcs.
12.0666 €
50 pcs.
11.2931 €
100 pcs.
10.6267 €
*incl. VAT plus shipping costs
Subject to prior sale
Device connector front mounting, 1339325, Phoenix Contact
M23, Device connector front mounting, series: M23 PRO Signal, straight, shielded: yes, for standard and ONECLICK fast locking system, No. of pos.: 8+1, Direction of rotation: Standard, contact connection type: Socket, Solder connection, 4x Ø 3.2, flange dimensions: 26 mm x 26 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Features
- Solutions with cross-manufacturer compatibility for standard and fast locking systems
- Modern, consistent design for highly convenient operation
- All housing can be fitted with pin or socket contacts
- Safe use in the field, thanks to high degree of protection
Technical specifications
| Pin number | 9 pole | |
| Type of locking | standard/ONECLICK quick locking system | |
| Contact connection | solder connection | |
| Product type | surface mount socket | |
| Coding | N | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP66/IP68 | |
| Thread size | M23 |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
