1245227 | Phoenix Contact

Plug, M17, 6 pole, crimp connection, SPEEDCON locking, straight, 1245227

Order No.: 64P5525
EAN: 4063151412289
MPN:
1245227
Series: ST

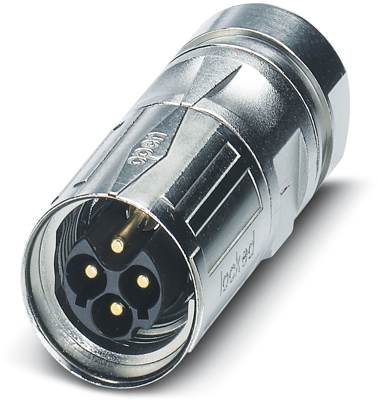

1245227 Phoenix Contact Sensor-Actuator Connectors Image 1
1245227 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.6822 € *
Available in 10 days: 249 pcs. - if ordered today
Total Price:
20.68 € *
Price list
Quantity
Price per unit*
1 pcs.
20.6822 €
10 pcs.
19.3970 €
25 pcs.
18.2546 €
50 pcs.
17.2431 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connector, 1245227, Phoenix Contact

Cable connector, straight, SPEEDCON, M17, number of positions: 5+PE, contact connection type: Stift, shielded: yes, degree of protection: IP67, cable diameter range: 10 mm - 12,5 mm, number of positions: 6, connection method: Crimp connection, Series: ST, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • Crimping connection: vibration- and temperature-resistant assembly
  • Flexible use: reliably connect various cable diameters
  • Molded designs with preassembled cables on one or both sides
Technical specifications
Thread size M17
Pin number 6 pole
Assembly cable assembly
Product type plug
Type of locking SPEEDCON locking
Contact connection crimp connection
Coding N
Degree of protection (IP) IP67
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
