1244886 | Phoenix Contact

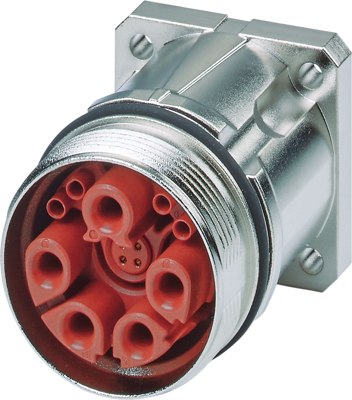

Surface mount socket, M40, 13 pole, crimp connection, standard/SPEEDCON locking system, straight, 1244886
Unit Price (€ / pc.)
57.2390 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
57.24 € *
Price list
Quantity
Price per unit*
1 pcs.
57.2390 €
5 pcs.
55.6325 €
10 pcs.
54.8590 €
25 pcs.
53.3715 €
*incl. VAT plus shipping costs
Subject to prior sale
Device connector front mounting, 1244886, Phoenix Contact
M40, Device connector front mounting, series: SB, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 8+4+PE, contact connection type: Socket, Crimp connection, Axial O-ring, flange dimensions: 40 mm x 40 mm, coding: Signal, coding 1, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Features
- Easy connection, thanks to infinitely adjustable cable outlet direction up to 310°
- Mechanical coding reliably prevents incorrect connections
- Safe use in the field, thanks to high degree of protection
- Consistent EMC protection for reliable connection solutions in the industrial environment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | surface mount socket | |
| Thread size | M40 | |
| Pin number | 13 pole | |
| Type of locking | standard/SPEEDCON locking system | |
| Coding | signal, coding 1 | |
| Orientation | straight | |
| Contact connection | crimp connection | |
| Assembly | front wall/square flange mounting | |
| Degree of protection (IP) | IP68/IP69K | |
| Version | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
