1244077 | Phoenix Contact

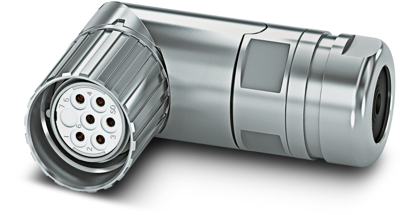

Jack, M23, 9 pole, crimp connection, screw locking, angled, 1244077

Order No.: 62P4866
EAN: 4063151405465
MPN:
1244077
CA-09S1N8AT008X
Series: CA
1244077 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
56.4536 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
56.45 € *
Price list
Quantity
Price per unit*
1 pcs.
56.4536 €
5 pcs.
54.8471 €
10 pcs.
53.3239 €
25 pcs.
51.8721 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connector, 1244077, Phoenix Contact

M23, Cable connector, series: CA, angled, shielded: yes, Screw locking mechanism, Number of positions: 8+1, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, cable diameter range: 10 mm - 14.5 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Angled cable outlet for confined spaces
  • Can be adapted to various applications, thanks to adjustable cable outlet direction
  • Safe use in the field, thanks to high degree of protection
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Crimping connection: vibration- and temperature-resistant assembly
Technical specifications
Filter Property Value
Product type jack
Degree of protection (IP) IP67
Orientation angled
Pin number 9 pole
Coding N
Contact connection crimp connection
Assembly cable assembly
Thread size M23
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
