1243861 | Phoenix Contact

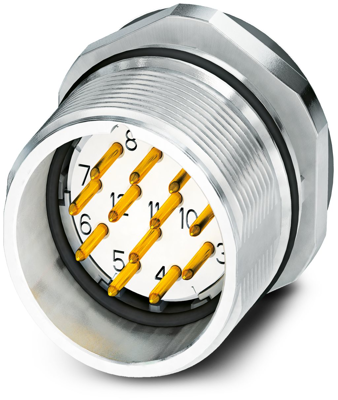

Panel plug, M23, 12 pole, solder connection, standard/SPEEDCON locking system, straight, 1243861
Unit Price (€ / pc.)
15.9460 € *
Available in 10 days: 949 pcs. - if ordered today
Total Price:
15.95 € *
Price list
Quantity
Price per unit*
1 pcs.
15.9460 €
10 pcs.
14.8631 €
50 pcs.
13.9230 €
100 pcs.
13.0900 €
*incl. VAT plus shipping costs
Subject to prior sale
Device connector front mounting, 1243861, Phoenix Contact
M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Pin, Solder connection, Axial seal, Central fastening M20 x 1.5, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Features
- Safe use in the field, thanks to high degree of protection
- Connector for flexible on-site assembly
- Consistent EMC protection for reliable transmission of signals
- Solder connection: proven connection technology for various litz wires
- Application-specific panel mounting optionally with thread or anti-rotation protection and lock nut
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 12 pole | |
| Coding | N | |
| Type of locking | standard/SPEEDCON locking system | |
| Thread size | M23 | |
| Product type | panel plug | |
| Contact connection | solder connection | |
| Assembly | front mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
