1243262 | Phoenix Contact

Plug, M17, 8 pole, crimp connection, SPEEDCON locking, straight, 1243262

Order No.: 62P6377
EAN: 4063151399467
MPN:
1243262
ST-08P1N8A8K03SX
Series: ST

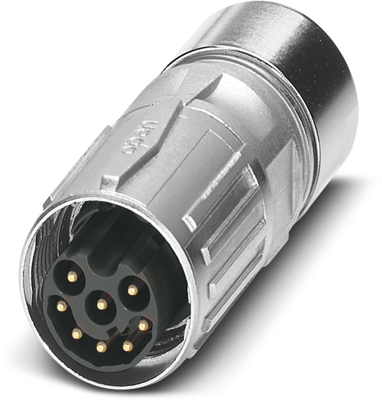

1243262 Phoenix Contact Sensor-Actuator Connectors Image 1
1243262 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.5747 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
21.57 € *
Price list
Quantity
Price per unit*
1 pcs.
21.5747 €
10 pcs.
20.2300 €
25 pcs.
19.0400 €
50 pcs.
17.9809 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connector, 1243262, Phoenix Contact

Cable connector, straight, SPEEDCON, M17, number of positions: 8, contact connection type: Pin, shielded: yes, degree of protection: IP67, cable diameter range: 5 mm - 9.2 mm, number of positions: 8, connection method: Crimp connection, series: ST, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Reduced size: ideal for compact devices
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • Crimping connection: vibration- and temperature-resistant assembly
  • Flexible use: reliably connect various cable diameters
Technical specifications
Filter Property Value
Product type plug
Assembly cable assembly
Orientation straight
Coding N
Type of locking SPEEDCON locking
Degree of protection (IP) IP67
Contact connection crimp connection
Pin number 8 pole
Thread size M17
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
