1239879 | Phoenix Contact

Panel plug, M12, 4 pole, strand connection, SPEEDCON locking, straight, 1239879

Order No.: 64P6625
EAN: 4063151394714
MPN:
1239879
Series: SACC
1239879 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
16.7909 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
16.79 € *
Price list
Quantity
Price per unit*
1 pcs.
16.7909 €
10 pcs.
15.6485 €
50 pcs.
14.6608 €
100 pcs.
13.7802 €
*incl. VAT plus shipping costs
Subject to prior sale

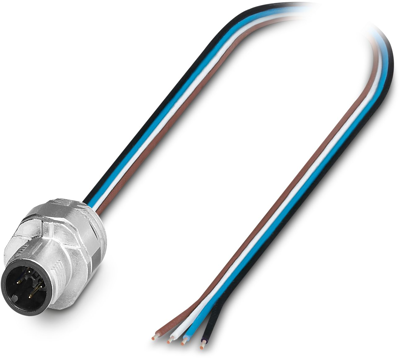

Device connector front mounting, 1239879, Phoenix Contact

Device connector front mounting, Universal, 4-position, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.34 mm², TPE litz wire, potted, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Preassembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
  • For high transmission safety: shield connection to the housing with optional EMC nut
  • SPEEDCON fast locking system reduces cabling times
Technical specifications
contact surface nickel-plated/gold-plated
Thread size M12
Orientation straight
Degree of protection (IP) IP67
Type of locking SPEEDCON locking
Product type panel plug
Pin number 4 pole
Assembly front panel mounting
Contact connection strand connection
Coding A
Logistics
Customs tariff number 85444290
Country of origin DE
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
