1239816 | Phoenix Contact

Panel plug, M12, 4 pole, solder connection, SPEEDCON locking, straight, 1239816

Order No.: 64P6603
EAN: 4063151433604
MPN:
1239816
Series: SACC
1239816 Phoenix Contact Sensor-Actuator Connectors

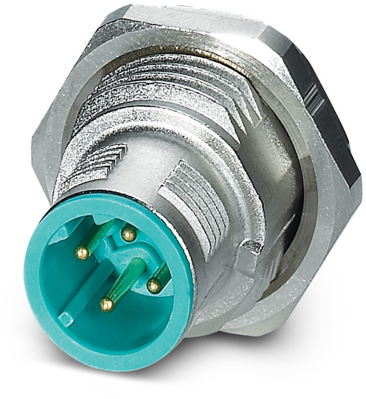

Image may differ
Unit Price (€ / pc.)
14.6262 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
14.63 € *
Price list
Quantity
Price per unit*
1 pcs.
14.6262 €
10 pcs.
13.6346 €
50 pcs.
12.7689 €
100 pcs.
12.0066 €
*incl. VAT plus shipping costs
Subject to prior sale

Device connector rear mounting, 1239816, Phoenix Contact

Device connector rear mounting, Ethernet CAT5 (100 Mbps), 4-position, Pin, straight, M12-SPEEDCON, coding: D, Rear mounting, M16 x 1.5, Wave soldering, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Easy PCB assembly: one-piece connectors for wave soldering
  • All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
  • For high transmission reliability: optional shield connection to the housing by means of shield contact
Technical specifications
Pin number 4 pole
Type of locking SPEEDCON locking
Contact connection solder connection
Product type panel plug
Coding D
Assembly rear mounting
Orientation straight
Degree of protection (IP) IP65/IP67
Thread size M12
contact surface nickel-plated/gold-plated
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
