1238894 | Phoenix Contact

Panel plug, M12, 8 pole, strand connection, straight, 1238894

Order No.: 64P6573
EAN: 4063151388591
MPN:
1238894
Series: SACC
1238894 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
20.1651 € *
Available in 10 days: 3 pcs. - if ordered today
Total Price:
20.17 € *
Price list
Quantity
Price per unit*
1 pcs.
20.1651 €
10 pcs.
18.7980 €
25 pcs.
17.6044 €
50 pcs.
16.5534 €
*incl. VAT plus shipping costs
Subject to prior sale

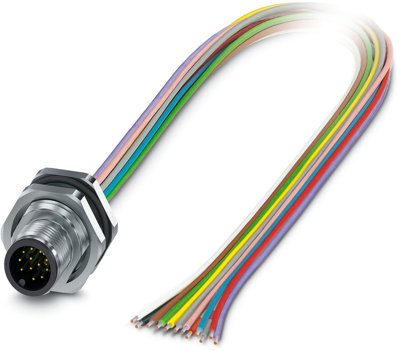

Device connector rear mounting, 1238894, Phoenix Contact

Device connector rear mounting, Universal, 8-position, Pin, straight, M12-Standard, coding: A, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.25 mm², TPE litz wire, potted, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Easy-to-install, optimized XL housing contour with wrench size 19
  • Mechanical tightening limitation for long-term-stable gasket
  • Preassembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
  • For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
Pin number 8 pole
Degree of protection (IP) IP65/IP67
Assembly rear mounting
Orientation straight
Coding A
Version cable 0.5 m
Product type panel plug
Additional parts equipped
Contact connection strand connection
Thread size M12
contact surface gold-plated
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
