1069502 | Phoenix Contact

Surface-mounting plug, M17, 4 pole, crimp connection, standard/ONECLICK quick locking system, straight, 1069502

Order No.: 64P6334
EAN: 4055626746579
MPN:
1069502
Series: M17 PRO
1069502 Phoenix Contact Sensor-Actuator Connectors

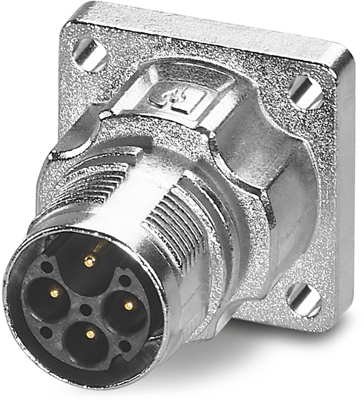

Image may differ
Unit Price (€ / pc.)
10.9480 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
10.95 € *
Price list
Quantity
Price per unit*
1 pcs.
10.9480 €
10 pcs.
10.2102 €
50 pcs.
9.5557 €
100 pcs.
8.9845 €
*incl. VAT plus shipping costs
Subject to prior sale

Device connector front mounting, 1069502, Phoenix Contact

M17, Device connector front mounting, series: M17 PRO, straight, shielded: yes, for standard and ONECLICK fast locking system, No. of pos.: 3+PE, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, flange dimensions: 26 mm x 26 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Features

  • Solutions with cross-manufacturer compatibility for standard and fast locking systems
  • Modern, consistent design for highly convenient operation
  • Crimping connection: vibration- and temperature-resistant assembly
  • All housing can be fitted with pin or socket contacts
  • Safe use in the field, thanks to high degree of protection
Technical specifications
Pin number 4 pole
Type of locking standard/ONECLICK quick locking system
Contact connection crimp connection
Product type surface-mounting plug
Coding N
Assembly panel mounting
Orientation straight
Degree of protection (IP) IP67/IP68
Thread size M17
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
