1068167 | Phoenix Contact

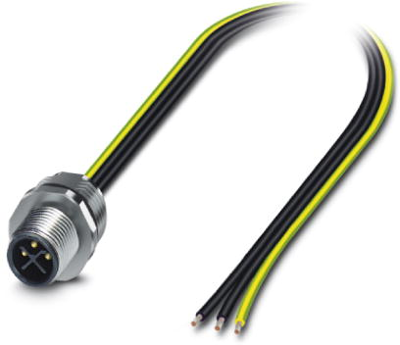

Panel plug, M12, 3 pole, strand connection, straight, 1068167
Unit Price (€ / pc.)
16.9337 € *
Standard delivery time from the manufacturer is: 8 Weeks
Power connector, 1068167, Phoenix Contact
Flush-type connector, Power, 3-position, Plug, M12, Front mounting, M16 x 1.5, Individual wires, PP litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- S-coded
- Pollution degree: 3
- Overvoltage category: III
- Degree of protection: IP67
Applications
- For transmitting high power
- For high transmission safety
Technical specifications
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65/IP67 | |
| Assembly | front mounting | |
| Orientation | straight | |
| Coding | S | |
| Version | cable 1.5 m | |
| Product type | panel plug | |
| Additional parts | equipped | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| contact surface | nickel-plated/gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
