1068127 | Phoenix Contact

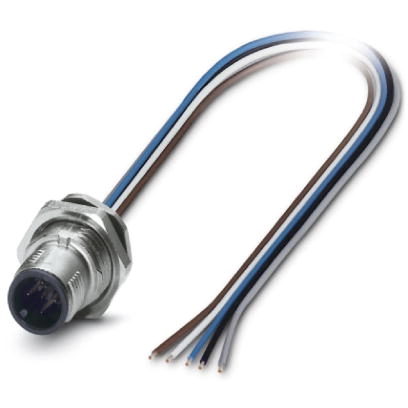

Panel plug, M12, 5 pole, strand connection, straight, 1068127
Order No.: 61P8701
EAN: 4055626739465
MPN:
1068127
SACC-DSI-M12MS-5P-M16/0,14 MET
Sensor-actuator connector, 1068127, Phoenix Contact
Flush-type connector, 5-position, M12 M12, Rear mounting, M16 x 1.5, TPE litz wire, cable length: 0.5 m.
Features
- Conductor material: Tin-plated Cu litz wires
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 0.5 m | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Coding | A | |
| Orientation | straight | |
| Contact connection | strand connection | |
| Additional parts | equipped | |
| Assembly | screw mounting | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
