1066080 | Phoenix Contact

Jack, 8 pole, crimp connection, straight, 1066080

Order No.: 62P2578
EAN: 4055626727981
MPN:
1066080
HC-M-08-EMC-DSUB-F
Series: HC-M

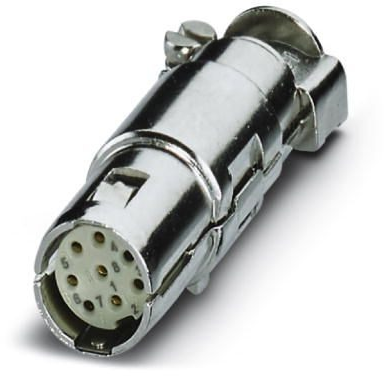

1066080 Phoenix Contact Sensor-Actuator Connectors Image 1
1066080 Phoenix Contact Sensor-Actuator Connectors Image 2
1066080 Phoenix Contact Sensor-Actuator Connectors Image 3
Image may differ
Unit Price (€ / pc.)
39.7817 € *
Available in 10 days: 219 pcs. - if ordered today
Total Price:
39.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
39.7817 €

Sensor-actuator connector, 1066080, Phoenix Contact

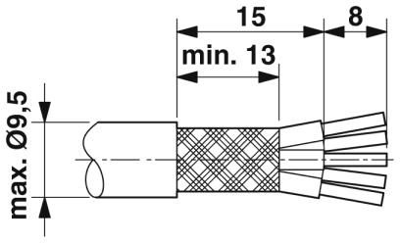

Connector, number of positions: 8, power contacts: 0, control contacts: 8, Socket, Crimp connection, 48 V, 5 A, 0.09 mm² - 0.52 mm², external cable diameter: 3 mm - 9.5 mm.

Features

  • Shielded
  • Overvoltage category: III
  • Pollution degree: 3
  • Crimp connection
  • Flammability rating according to UL 94: V0

Applications

  • For data transimission and signal
Technical specifications
Filter Property Value
Pin number 8 pole
Contact connection crimp connection
Assembly cable assembly
Product type jack
Orientation straight
Logistics
Property Value
Customs tariff number 85366990
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
