1021831 | Phoenix Contact

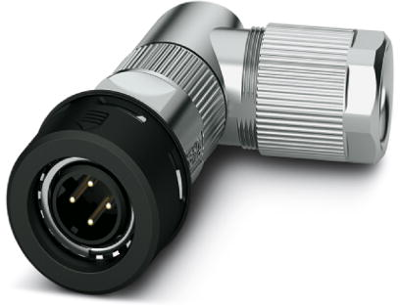

Plug, M12, 4 pole, crimp connection, push pull, angled, 1021831

Order No.: 65P1835
EAN: 4055626515205
MPN:
1021831
SACC-P12MRD-4CT-CM SH PN
Series: SACC
1021831 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
48.5877 € *
Available in 10 days: 100 pcs. - if ordered today
Total Price:
48.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
48.5877 €

Sensor-actuator connector, 1021831, Phoenix Contact

Data connector, PROFINET CAT5 (100 Mbps), 4-position, shielded, Plug angled M12 Push-Pull, Crimp connection, knurl material: PA 6.6, external cable diameter 4.5 mm - 7.5 mm, without crimp contacts.

Features

  • Plug and Produce: convenient and secure connection
  • Robust connection
  • D-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67

Applications

  • For railway applications
Technical specifications
Thread size M12
Pin number 4 pole
Assembly cable assembly
Product type plug
Type of locking push pull
Contact connection crimp connection
Coding D
Degree of protection (IP) IP65
Orientation angled
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
