1021784 | Phoenix Contact

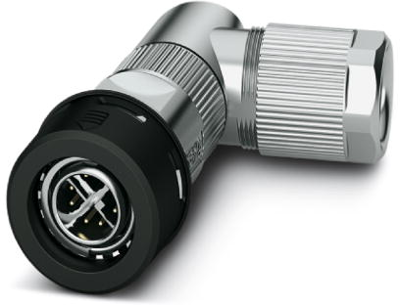

Plug, M12, 8 pole, crimp connection, push pull, angled, 1021784
Unit Price (€ / pc.)
82.9073 € *
Standard delivery time from the manufacturer is: 2 Weeks
Sensor-actuator connector, 1021784, Phoenix Contact
Data connector, Ethernet CAT6A (10 Gbps), PROFINET CAT6A (10 Gbps), 8-position, shielded, Plug angled M12 Push-Pull, Crimp connection, knurl material: PA 6.6, external cable diameter 6.5 mm to 10 mm, without crimp contacts.
Features
- Plug and Produce: convenient and secure connection
- Robust connection
- X-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For railway applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65 | |
| Coding | X | |
| Contact connection | crimp connection | |
| Product type | plug | |
| Thread size | M12 | |
| Pin number | 8 pole | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Type of locking | push pull |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
