1668975 | Phoenix Contact

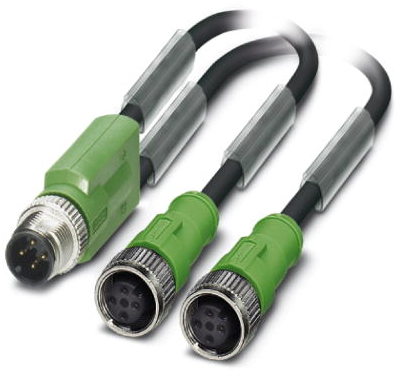

Sensor actuator cable, M12-cable plug, straight to 2 x M12 cable socket, straight, 3 pole, 1.5 m, PUR, black, 4 A, 1668975
Unit Price (€ / pc.)
51.2057 € *
Available in 10 days: 36 pcs. - if ordered today
Sensor/actuator cable, 1668975, Phoenix Contact
Sensor/actuator cable, 3-position, PUR halogen-free, Black-gray RAL 7021, Plug straight M12, Coding: A, on socket straight, M12, Coding: A, PIN 2+4 bridged and Socket straight M12, Coding: A, PIN 2+4 bridged, Cable length: 1.5 m
Technical specifications
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | 2 x M12 cable socket, straight | |
| Pin number | 3 pole | |
| Cable length | 1.5 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP65/IP67/IP68 | |
| LED display | No | |
| max. Voltage | 250 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
