1620425 | Phoenix Contact
Sensor actuator cable, M23-cable socket, angled to open end, 7 pole + PE, 5 m, PUR, orange, 1620425
Unit Price (€ / pc.)
155.1284 € *
Standard delivery time from the manufacturer is: 7 Weeks

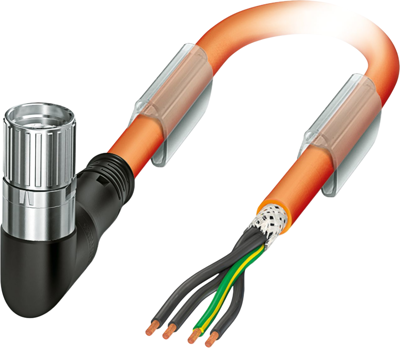

Sensor-actuator cable, 1620425, Phoenix Contact

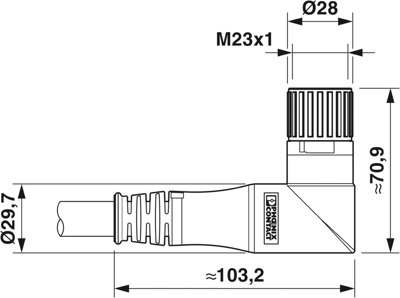

Cable plug in molded plastic, series: KSF, M23-Socket, angled rotatable, -120° left/120° right, number of positions: 4+3+PE, type of locking: Screw locking mechanism, cable length: 5 m, shielded: yes, color of outer sheath: orange RAL 2003.
Features
- Simple and safe: 100% electrically tested and assembled ready for use
- Easy connection: angled design with configurable cable outlet direction
- High flexibility: customer-specific assemblies and cable lengths can be supplied
Technical specifications
| Filter | Property | Value |
|---|---|---|
| LED display | No | |
| Pin number | 7 pole + PE | |
| Connection (2) | open end | |
| max. Voltage | 630 V | |
| Degree of protection (IP) | IP67 | |
| Material | PUR | |
| Colour | orange | |
| Cable length | 5 m | |
| Connection (1) | M23-cable socket, angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
