1619312 | Phoenix Contact
Sensor actuator cable, M17-cable socket, straight to open end, 5 pole + PE, 10 m, PUR, orange, 1619312
Unit Price (€ / pc.)
147.917 € *
Standard delivery time from the manufacturer is: 7 Weeks

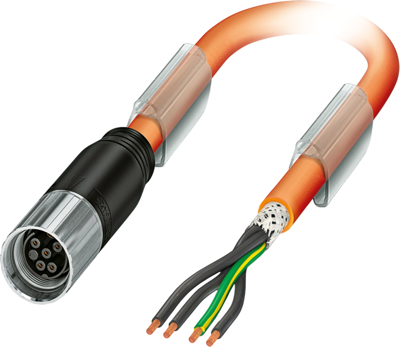

Sensor-actuator cable, 1619312, Phoenix Contact
Cable plug in molded plastic, series: KST, M17-Socket, Straight, plastic molded, number of positions: 5+PE, type of locking: Screw locking mechanism, cable length: 10 m, shielded: yes.
Features
- Simple and safe: 100% electrically tested and assembled ready for use
- Designs with preassembled cables on one or both sides
- High flexibility: customer-specific assemblies and cable lengths can be supplied
Technical specifications
| Filter | Property | Value |
|---|---|---|
| LED display | No | |
| Pin number | 5 pole + PE | |
| Connection (2) | open end | |
| max. Voltage | 630 V | |
| Degree of protection (IP) | IP67 | |
| Material | PUR | |
| Colour | orange | |
| Cable length | 10 m | |
| Connection (1) | M17-cable socket, straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
