1555745 | Phoenix Contact

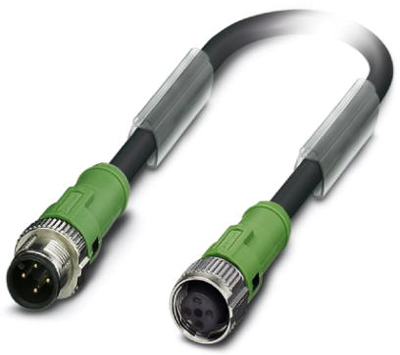

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, straight, 4 pole, 15 m, PUR, black, 4 A, 1555745

Order No.: 61P6792
EAN: 4046356173742
MPN:
1555745
SAC-4P-MS/15,0-186/FS SCO
Series: SAC-4P
1555745 Phoenix Contact Sensor-Actuator Cables Image 1
1555745 Phoenix Contact Sensor-Actuator Cables Image 2
1555745 Phoenix Contact Sensor-Actuator Cables Image 3
Image may differ
Unit Price (€ / pc.)
88.3456 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
88.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
88.3456 €

Sensor/actuator cable, 1555745, Phoenix Contact

Sensor/actuator cable, 4-position, PUR, Black-gray RAL 7021, Plug straight M12 SPEEDCON, Coding: A, on socket straight, M12 SPEEDCON, Coding: A, Cable length: 15 m

Features

  • Easy and safe: 100% electrically tested plug-in components
  • Save time, thanks to installation with SPEEDCON fast locking system
  • High-performance: connectors and cables with a large conductor cross section for power supply
Technical specifications
Filter Property Value
Connection (1) M12-cable plug, straight
Connection (2) M12-cable socket, straight
Pin number 4 pole
Cable length 15 m
Colour black
Material PUR
Degree of protection (IP) IP65/IP67
LED display No
max. Voltage 250 V
Rated current 4 A
Logistics
Property Value
Country of origin PL
Customs tariff number 85444290
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
