1553365 | Phoenix Contact

Sensor actuator cable, M12-cable socket, straight to open end, 8 pole, 0.5 m, PUR, turquoise, 2 A, 1553365

Order No.: 61P8173
EAN: 4046356162340
MPN:
1553365
SACCBP-M12FS-8CON-M16/0,5-940
Series: SACCBP

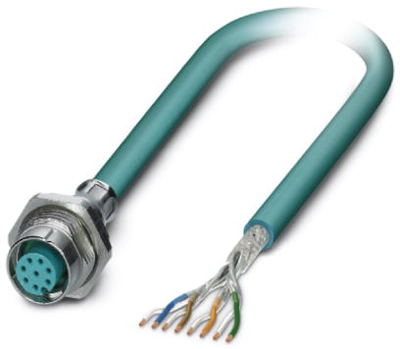

1553365 Phoenix Contact Sensor-Actuator Cables Image 1
1553365 Phoenix Contact Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
75.7911 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
75.79 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
75.7911 €

Bus system cable, 1553365, Phoenix Contact

Bus system flush-type socket, Ethernet, 8-position, M12, Shielded, Rear/screw mounting with M16 thread, with 0.5 m bus cable, 4 x 2 x 0.26 mm²

Technical specifications
Connection (1) M12-cable socket, straight
Connection (2) open end
Pin number 8 pole
Cable length 0.5 m
Colour turquoise
Material PUR
Degree of protection (IP) IP67
LED display No
max. Voltage 30 V
Rated current 2 A
Logistics
Customs tariff number 85444290
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
