1551558 | Phoenix Contact

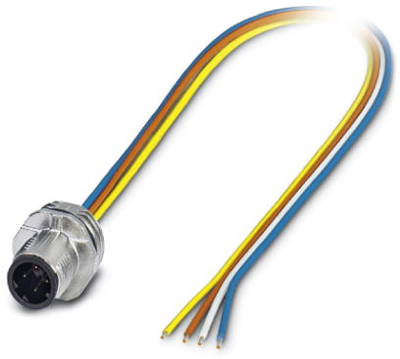

Sensor actuator cable, M12-cable plug, straight to open end, 4 pole, 0.5 m, TPE, 4 A, 1551558
Order No.: 61P9085
EAN: 4046356153577
MPN:
1551558
SACC-E-MSD-4CON-M16/0,5 SCO
Unit Price (€ / pc.)
21.0035 € *
Available: 0 pcs.
Leadtime: On Request **
Device connector, 1551558, Phoenix Contact

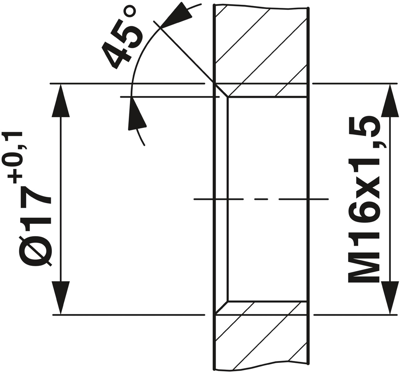

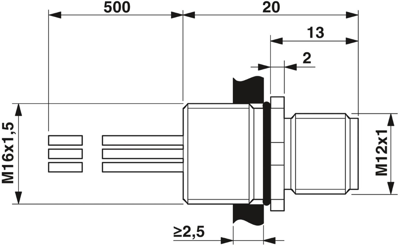

Device connector front mounting, PROFINET CAT5 (IEC 11801:2002), 4-position, Flush-type male connector, Straight, M12-SPEEDCON, D, on free cable end, Front mounting, M16 x 1.5, Individual wires, Cable length: 0.5 m, 0.34 mm², TPE litz wire
Features
- Pre-assembled with cables in various standard lengths for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
- For high transmission safety: shield connection to the housing with optional EMC nut
- SPEEDCON fast locking system reduces cabling times
Technical specifications
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | open end | |
| Cable length | 0.5 m | |
| LED display | No | |
| Material | TPE | |
| max. Voltage | 250 V | |
| Rated current | 4 A | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
