1551532 | Phoenix Contact

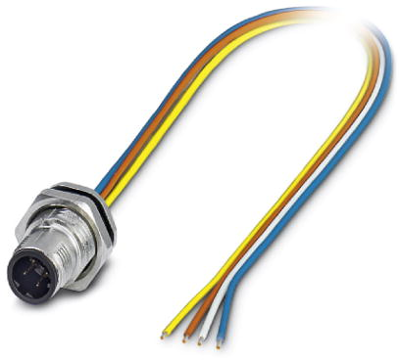

Sensor actuator cable, M12-cable plug, straight to open end, 4 pole, 0.5 m, TPE, 4 A, 1551532
Unit Price (€ / pc.)
23.4668 € *
Standard delivery time from the manufacturer is: 9 Weeks
Device connector, 1551532, Phoenix Contact
Device connector, rear mounting, PROFINET, 4-position, Flush-type male connector, Straight, M12-SPEEDCON, D, on free cable end, Rear mounting, Pg9, Individual wires, Cable length: 0.1 m, 0.34 mm², TPE litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb <0.1%) 1239988
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Material | TPE | |
| Cable length | 0.5 m | |
| max. Voltage | 250 V | |
| LED display | No | |
| Pin number | 4 pole | |
| Connection (1) | M12-cable plug, straight | |
| Degree of protection (IP) | IP67 | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
