1535202 | Phoenix Contact

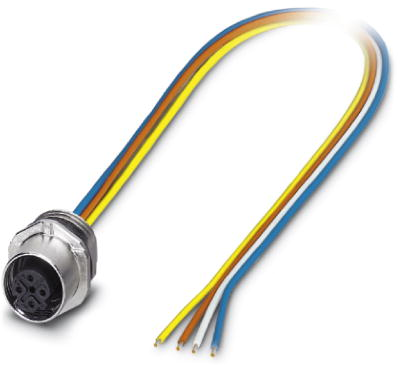

Sensor actuator cable, M12-cable socket, straight to open end, 4 pole, 0.5 m, TPE, 4 A, 1535202
Unit Price (€ / pc.)
21.6699 € *
Standard delivery time from the manufacturer is: 4 Weeks
Bus system cable, 1535202, Phoenix Contact

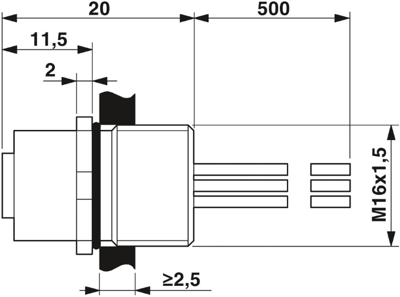

Bus system flush-type socket, PROFINET, 4-position, M12-SPEEDCON, D-coded, Front/screw mounting with M16 thread, with 0.5 m TPE litz wire, 4 x 0.34 mm²
Features
- Pre-assembled with cables in various standard lengths for immediate use
- Customer-specific assemblies and cable lengths can be supplied
- Sealed on the cable side for optimum tightness of seal
- All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
- For high transmission safety: shield connection to the housing with optional EMC nut
- SPEEDCON fast locking system reduces cabling times
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Rated current | 4 A | |
| Pin number | 4 pole | |
| max. Voltage | 250 V | |
| LED display | No | |
| Cable length | 0.5 m | |
| Connection (1) | M12-cable socket, straight | |
| Degree of protection (IP) | IP67 | |
| Material | TPE |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
