1524336 | Phoenix Contact

Sensor actuator cable, M12-cable plug, straight to open end, 4 pole, 15 m, PVC, green, 4 A, 1524336

Order No.: 61P6647
EAN: 4046356021418
MPN:
1524336
SAC-4P-M12MSD/15,0-933
Series: SAC-4P

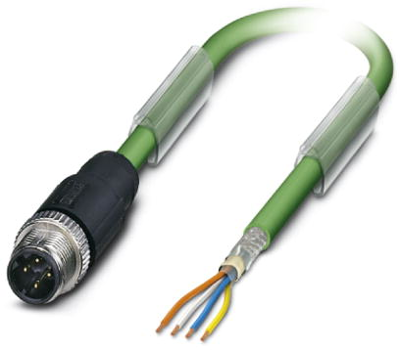

1524336 Phoenix Contact Sensor-Actuator Cables Image 1
1524336 Phoenix Contact Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
107.1476 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
107.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
107.1476 €

Network cable, 1524336, Phoenix Contact

Network cable, PROFINET CAT5 (100 Mbps), EtherCAT CAT5 (100 Mbps), 4-position, Shielded (Advanced Shielding Technology), Plug straight M12 / IP67, Coding: D, on free cable end, Cable length: 15 m

Technical specifications
Filter Property Value
Connection (1) M12-cable plug, straight
Connection (2) open end
Pin number 4 pole
Cable length 15 m
Colour green
Material PVC
Degree of protection (IP) IP65/IP67
LED display No
max. Voltage 48 V
Rated current 4 A
Logistics
Property Value
Country of origin PL
Customs tariff number 85444290
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
