1519862 | Phoenix Contact
Sensor actuator cable, M8-cable socket, straight to open end, 3 pole, 2.5 m, PUR, black, 4 A, 1519862
Order No.: 61P5172
EAN: 4046356019989
MPN:
1519862
SAC-3P- 2,5-PUR/M 8SIFS
Unit Price (€ / pc.)
19.2185 € *
Available: 0 pcs.
Leadtime: On Request **

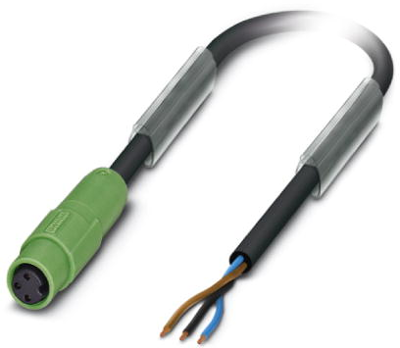

Sensor/actuator cable, 1519862, Phoenix Contact
Sensor/actuator cable, 3-position, PUR halogen-free, Black-gray RAL 7021, Free cable end, on socket straight, M8 Snap-in, Cable length: 2.5 m
Features
- Easy and safe: 100% electrically tested plug-in components
- Save time, thanks to installation with snap-in fast locking system
- Our standard: robust halogen-free PUR cable
Technical specifications
| Connection (1) | M8-cable socket, straight | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 2.5 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 48 V | |
| Rated current | 4 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
