1500347 | Phoenix Contact
Sensor actuator cable, M8-flange plug, straight to open end, 4 pole, 0.5 m, 4 A, 1500347
Unit Price (€ / pc.)
16.2316 € *
Available: 6 pcs.
Available in 10 days: 4,632 pcs.
Leadtime: 2 Weeks **
Total Price:
16.23 € *
Price list
Quantity
Price per unit*
1 pcs.
16.2316 €
10 pcs.
14.2919 €
50 pcs.
13.3042 €
150 pcs.
12.7211 €
500 pcs.
12.0785 €
*incl. VAT plus shipping costs
**Subject to prior sale

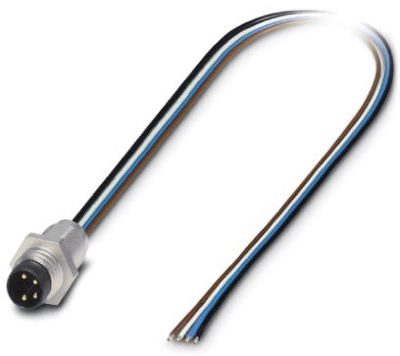

Sensor-actuator connector, 1500347, Phoenix Contact
Flush-type connector, 4-position, Plug, straight, M8, Front mounting, M8 x 0.5, Individual wires, cable length: 0.5 m, 0.25 mm², PVC litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Connection (1) | M8-Flanschstecker, gerade | |
| Connection (2) | offenes Ende | |
| Cable length | 0.5 m | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A | |
| Pin number | 4-polig | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
