1500334 | Phoenix Contact

Sensor actuator cable, M8-flange plug, straight to open end, 3 pole, 0.5 m, 4 A, 1500334

Order No.: 61P8976
EAN: 4017918589097
MPN:
1500334
SACC-E-M 8MS-3CON-M8/0,5
Series: SACC
1500334 Phoenix Contact Sensor-Actuator Cables
Image may differ
Unit Price (€ / pc.)
15.3510 € *
Available: 1 pcs.
Available in 10 days: 1,808 pcs. - if ordered today
Total Price:
15.35 € *
Price list
Quantity
Price per unit*
1 pcs.
15.3510 €
10 pcs.
13.4946 €
50 pcs.
12.5664 €
150 pcs.
12.0309 €
500 pcs.
11.4002 €
*incl. VAT plus shipping costs
Subject to prior sale

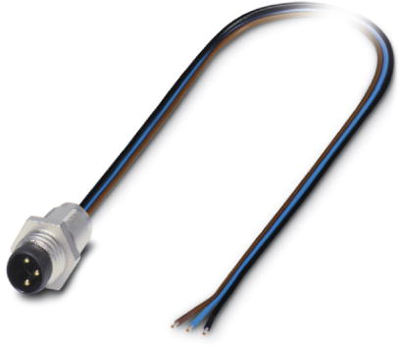

Sensor-actuator connector, 1500334, Phoenix Contact

Flush-type connector, 3-position, Plug, straight, M8, Front mounting, M8 x 0.5, Individual wires, cable length: 0.5 m, 0.25 mm², PVC litz wire.

Features

  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Cable length 0.5 m
LED display No
max. Voltage 60 V
Degree of protection (IP) IP67
Rated current 4 A
Connection (2) open end
Pin number 3 pole
Connection (1) M8-flange plug, straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
