1457021 | Phoenix Contact

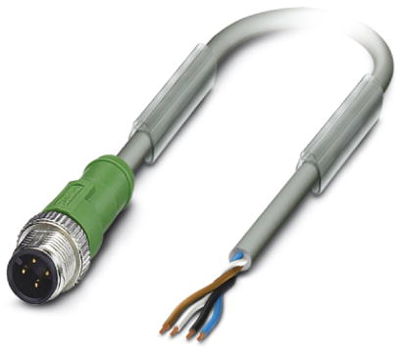

Sensor actuator cable, M12-cable plug, straight to open end, 4 pole, 3 m, PUR, gray, 4 A, 1457021
Order No.: 61P6514
EAN: 4046356593380
MPN:
1457021
SAC-4P-M12MS/ 3,0-800
Unit Price (€ / pc.)
26.1562 € *
Available: 0 pcs.
Leadtime: On Request **
Sensor/actuator cable, 1457021, Phoenix Contact
Sensor/actuator cable, 4-position, PUR halogen-free, Resistant to welding sparks, Highly flexible, Gray RAL 7001, Plug straight M12, Coding: A, on free cable end, Cable length: 3 m, for robots and drag chains
Features
- Easy and safe: 100% electrically tested plug-in components
- Reliable solution for the body shop as cable is resistant to welding sparks
Technical specifications
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | open end | |
| Colour | gray | |
| Cable length | 3 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 250 V | |
| Rated current | 4 A | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP65/IP67/IP68 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
