1441723 | Phoenix Contact

Panel plug, M12, 17 pole, straight, 1441723

Order No.: 61P9438
EAN: 4046356533065
MPN:
1441723
SACC-SQ-M12MS-17CON-20/0,5
Series: SACC
1441723 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
52.6932 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
52.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
52.6932 €

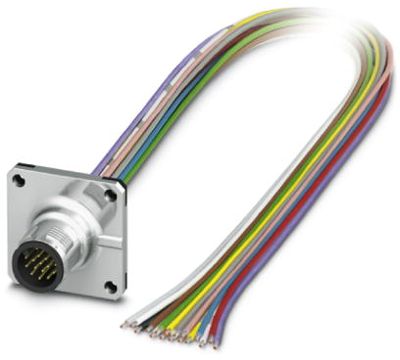

Sensor-actuator connector, 1441723, Phoenix Contact

Sensor/actuator flush-type plug, 17-pole, M12, front/square flange mounting, with 0.5 m TPE litz wire, 17 x 0.14 mm².

Features

  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • Fast locking system
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67

Applications

  • For transmission of signals
  • For data transimission
Technical specifications
Orientation straight
Additional parts equipped
Product type panel plug
Pin number 17 pole
Thread size M12
Version cable 0.5 m
Logistics
Customs tariff number 85444290
Country of origin DE
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
