1441668 | Phoenix Contact

Panel plug, M12, 5 pole, straight, 1441668

Order No.: 61P9449
EAN: 4046356533003
MPN:
1441668
SACC-SQ-M12MSB-5CON-20/0,5
Series: SACC
1441668 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
25.5612 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
25.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
25.5612 €

Sensor-actuator connector, 1441668, Phoenix Contact

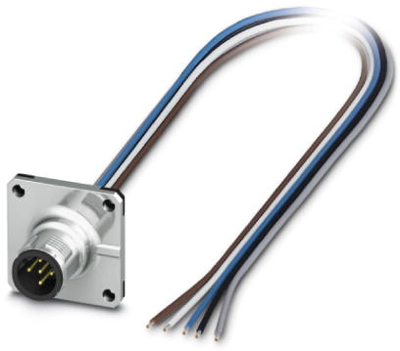

Sensor/actuator flush-type plug, 5-pole, M12, front/square flange mounting, with 0.5 m TPE litz wire, 5 x 0.34 mm².

Features

  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • Fast locking system
  • B-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67

Applications

  • For transmission of signals
  • For data transimission
Technical specifications
Orientation straight
Additional parts equipped
Product type panel plug
Pin number 5 pole
Thread size M12
Version cable 0.5 m
Logistics
Customs tariff number 85444290
Country of origin DE
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
